CustomDUO modules

v42 (r01)  discontinued

Now Available

Latest v42 (r02) and Simple (r02)

The v42 is the latest version of our widely acclaimed Duo Omni module, simply the most effective LED conversion for the Petzl Duo, with optional user programmable light settings. The spot and flood LEDs can be operated separately, or blended together, to to best suit your individual needs.



sale £60  (was £70)  (remote control optional +£2.50)

v42 (r01) Specification

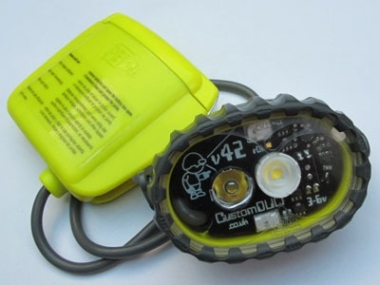

  • Will work with any original pre 2018 Petzl Duo - the Cavers Duo!
  • Twin high power XP-G3 LEDs (172 lumen @ 350mA @ 85 degC) 5000k neutral cool tint
  • Also available with 3000k warm XP-G3 LEDs (156 lumen @ 350mA @ 85 degC)
  • 620 lumen maximum output (combined spot 310 lumen and flood 310 lumen)
  • 4 useful regulated light settings (factory default - see table below)
  • User configurable settings, easily programmed with optional remote control
  • Smooth spot optic for distant focus, and flood LED with efficient optic
  • LEDs operated separately or blended together, from 25 lumen
  • User defined power combinations to best suits your individual requirements
  • Also incorporates seprate low power side LED (8 lumen), and battery charge indication
  • Super robust, proven circuit architecture
  • New alloy PCB with custom heat sink, and discreet thermal management

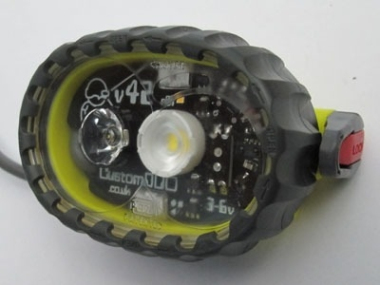

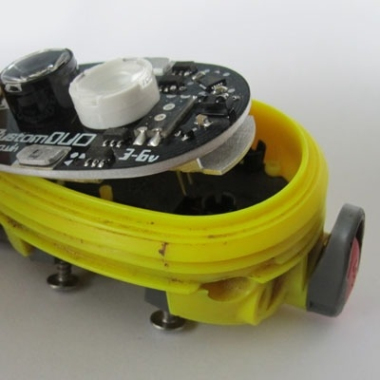

  • Simple push fit directly into existing Petzl Duo pilot bulb connection, see Fitting Guide
  • No power drain on batteries when lamp is switched off
  • Progressive dimming at end of battery charge (will not just shut off when batteries are flat)
  • 6.0 volt maximum input (4x AA batteries) or 3.7v li-ion Duo conversion

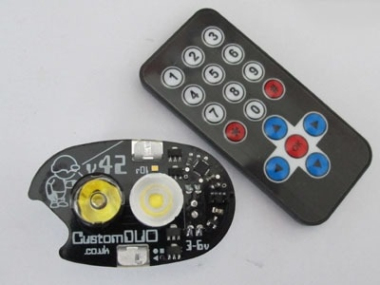

The v42 has two main LEDs. A focused spot LED and a wide angle flood LED with optic.  In normal operation the v42 has four factory default power settings (see following table). The v42 also has a separate side LED (white smd LED) for maximum run time, and battery charge level indication visible without removing helmet.

The factory default light settings are;



  1. low flood - hands and knees caving !
  2. high spot - route finding in  large passages
  3. medium flood - general progression around cave
  4. high spot and high flood - if you really must !!



see Operation chart including light output and indicative run times

To switch between the settings, use the down switch on the Petzl Duo. Switch on-off-on-off to move between settings 1-2-3-4 ... 1-2 etc, in a looping sequence. Setting 1 will blink momentarily when selected to make it very easy to determine exactly which setting has been selected.

Operating the switch very quickly, on-off-on ('double switch') will turn on low power side smd LED. At this point, the main LED will blink 1 to 5 times to indicate the approximate level of battery charge.  This is visible without removing helmet for maximum convenience.

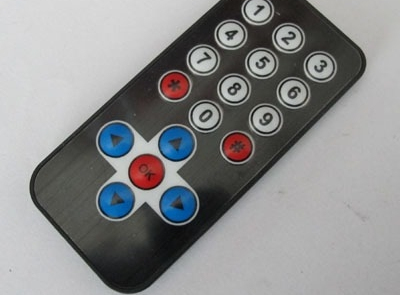

The v42 can be programmed using Customduo infrared remote control (optional). From 1-9 light settings can be specified, and the level of light provided by the spot and/or flood LEDs for each setting can be configured by the user.



The spot and flood LEDs can be operated separately or blended together. Each LED can be operated at low, medium, medium plus, high and maximum, offering a choice from 24 possible light combinations



For further information about operaton and performance, including how to program and configure settings, see v42 Operation

Factory Setting

Spot LED

Flood LED

Output*

(5000k LEDs)

Output*

(3000k LEDs)

Duration

(est. 2500mAh eneloops)

1 (low flood)

-

150mA

73 lumen

65 lumen

16 hours

2 (high spot)

700mA

-

310 lumen

280 lumen

3 hours

3 (medium flood)

-

350mA

172 lumen

156 lumen

6 hours

(high)

700mA

700mA

620 lumen

560 lumen

1.5 hours

'double-switch'

-

20mA

8 lumen

8 lumen

100 hours
